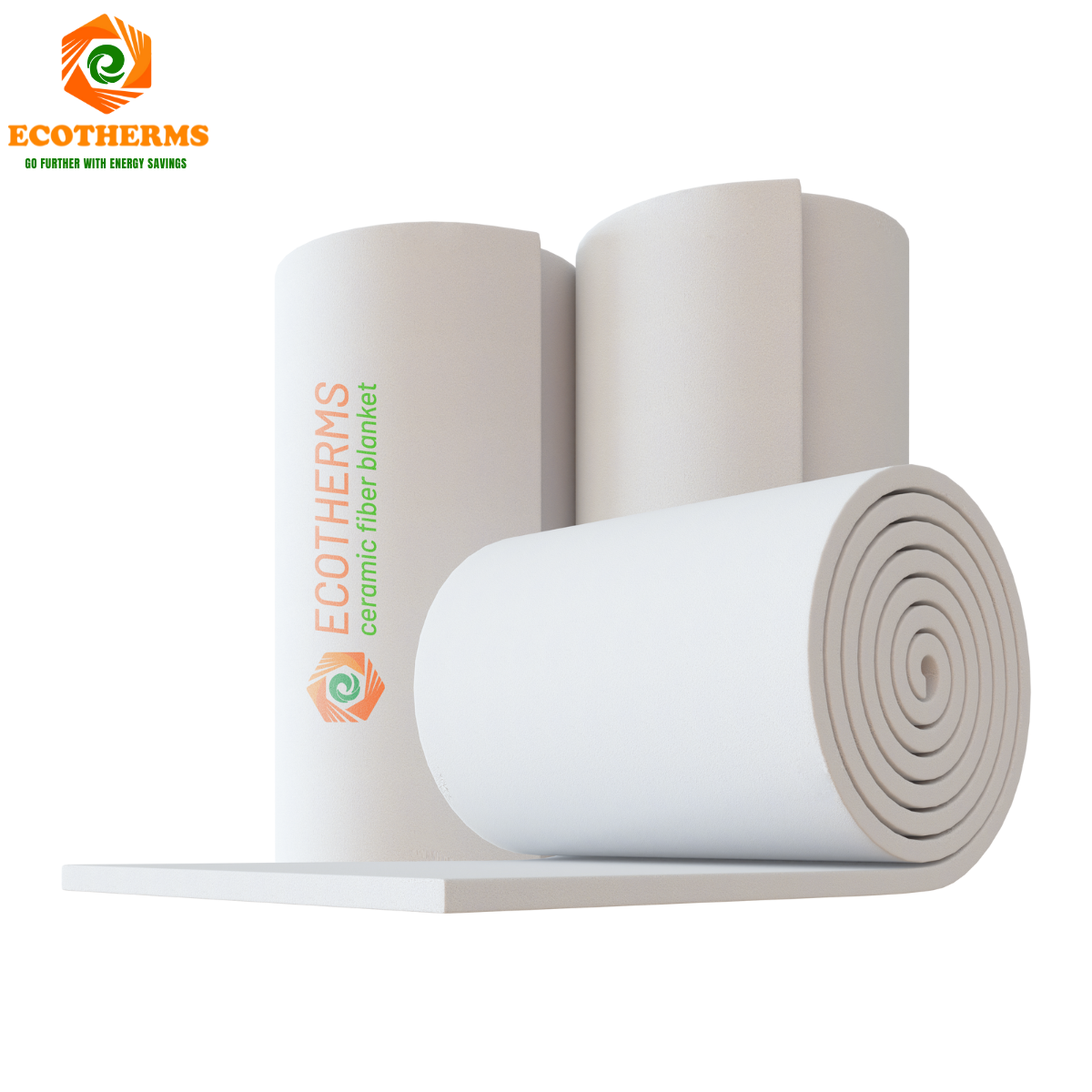

ECOTHERMS Ceramic Fiber Blanket 1400 AZ

Description – ECOTHERMS Ceramic Fiber Blanket 1400 AZ

ECOTHERMS Ceramic Fiber Blanket 1400 AZ is designed for thermal insulation inside and outside furnace walls, at furnace doors, and in other high-temperature zones.

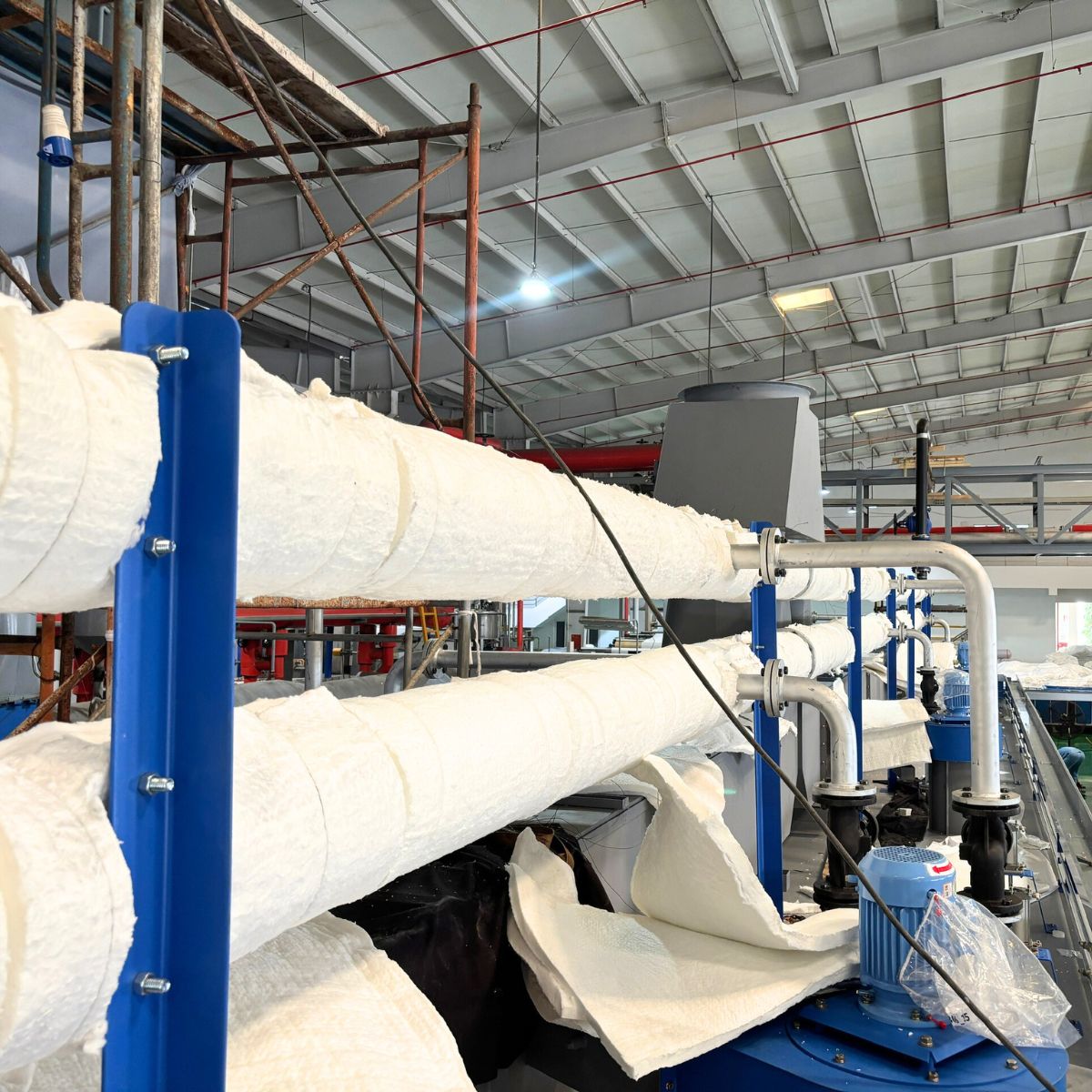

In rolled form, ECOTHERMS Ceramic Fiber Blanket 1400 AZ can be used to insulate and protect high-temperature pipelines, serve as a fire-resistant core material in fireproof doors, and provide both thermal and acoustic insulation for power generators.

Key Features & Benefits of ECOTHERMS Ceramic Fiber Blanket 1400 AZ

Compared to conventional materials, ECOTHERMS ceramic fiber offers a range of superior properties:

• Outstanding High-Temperature Resistance
  Withstands temperatures up to 1400°C, making it suitable for demanding high-temperature applications.
• Excellent Thermal Insulation
  Its low thermal conductivity minimizes heat transfer, saving energy and reducing operational costs.
• Enhanced Durability
  Highly resistant to abrasion and thermal shock, ensuring long-term performance even in harsh conditions.
• Superior Fire Safety
  Non-combustible and free from toxic smoke emissions, ensuring safety in high fire-risk environments.
• Easy to Use & Install
  Supplied in ready-to-use form with simplified installation, adaptable to different applications.

Applications

These properties make ECOTHERMS ceramic fiber an ideal choice for repairing or upgrading the thermal insulation of various equipment, including furnaces, boilers, pipelines, and storage tanks. Its applications enhance thermal efficiency, reduce energy consumption, and extend maintenance cycles.

Industrial Applications

Thanks to its superior properties, ECOTHERMS Ceramic Fiber Blanket 1400 AZ is widely applied across different industries. Examples include:

• Ceramics and Glass Industry

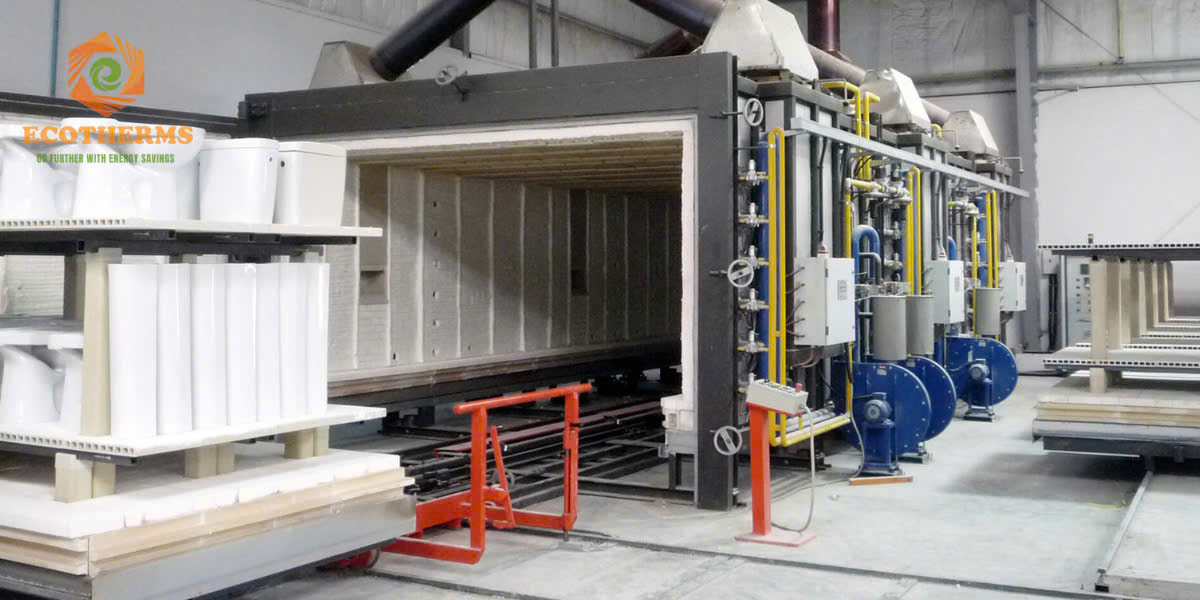

  Used for furnace insulation, automotive gaskets, kiln door and wall linings.
• Automotive Industry
  Suitable for both electric vehicles and conventional drivetrains, from exhaust heat shields and airbag inflator protection to lithium battery separators.
• Construction Industry
  Applied in ventilation systems, chimneys, and building fireproofing solutions.
• Oil & Gas Industry
  Protects facilities and equipment such as pyrolysis furnaces, heaters, walls, roofs, and crude oil furnaces.
• Power Generation
  Used in boilers, turbines, pipeline insulation, and other high-temperature applications.

Storage

ECOTHERMS Ceramic Fiber Blanket 1400 AZ is packaged in plastic bags or cartons, depending on product size.

The product should be stored in a dry place, protected from moisture.

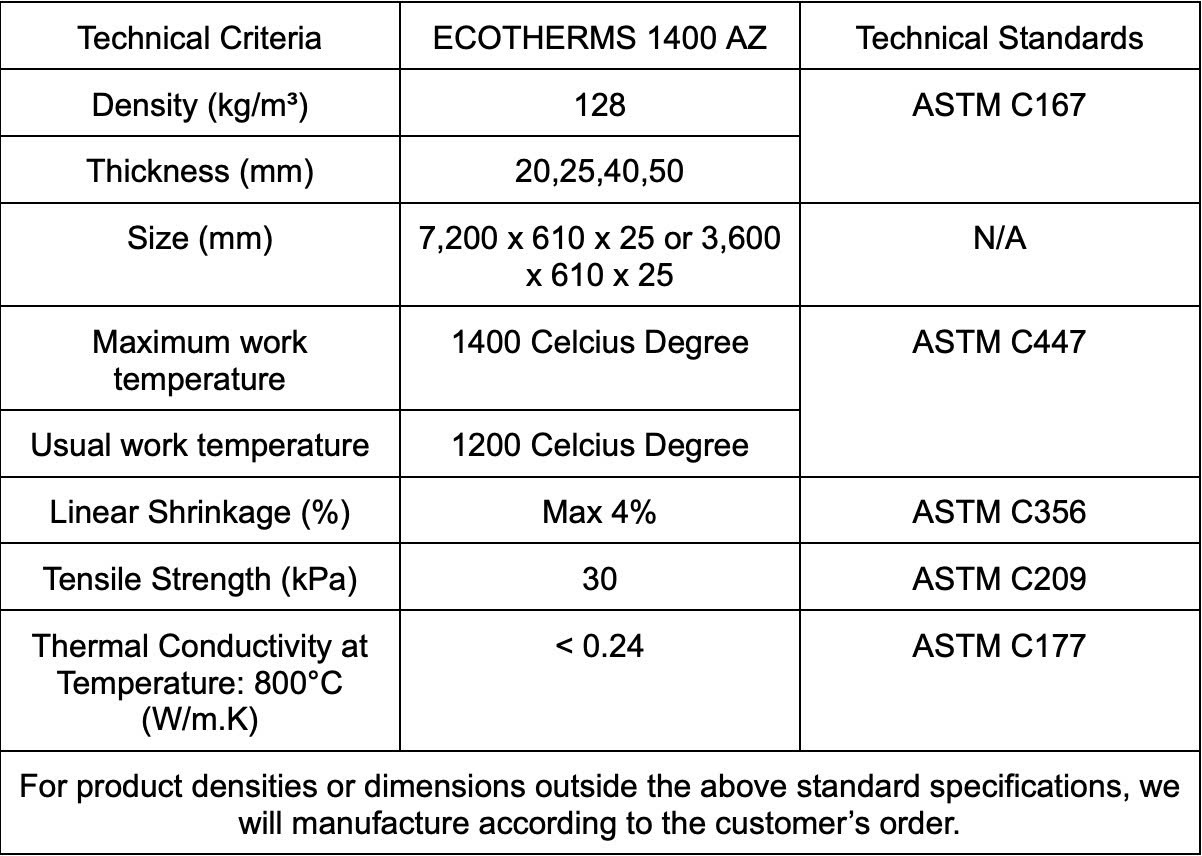

Technical Specification & Dimensions

Tools & Document

We respectfully invite our valued customers to refer to the product documentation for ECOTHERMS 1400 AZ Ceramic Fiber at the following link:

• ECOTHERMS CERAMIC FIBER CATALOGUE: ECOTHERMS – Ceramic Fiber v2024
