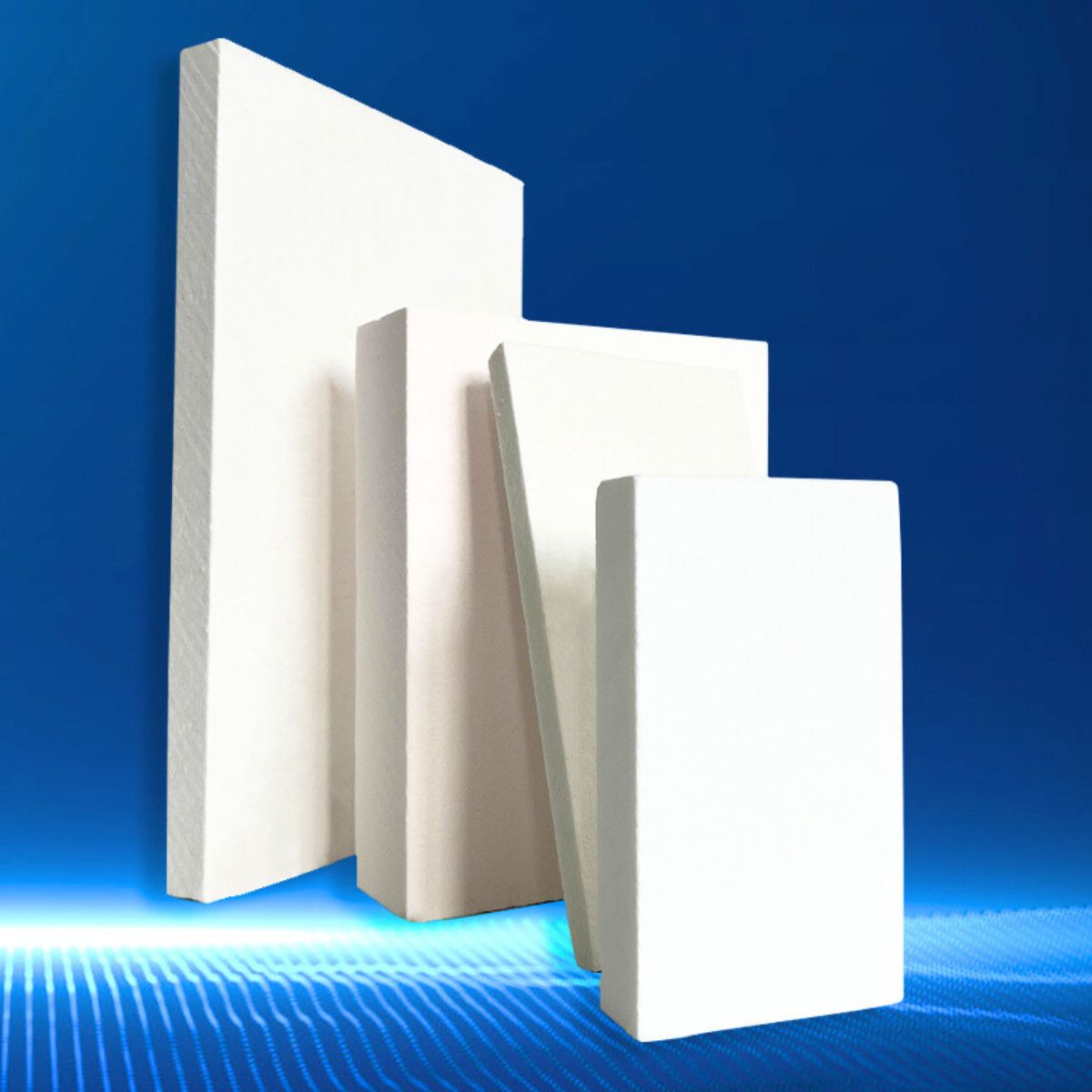

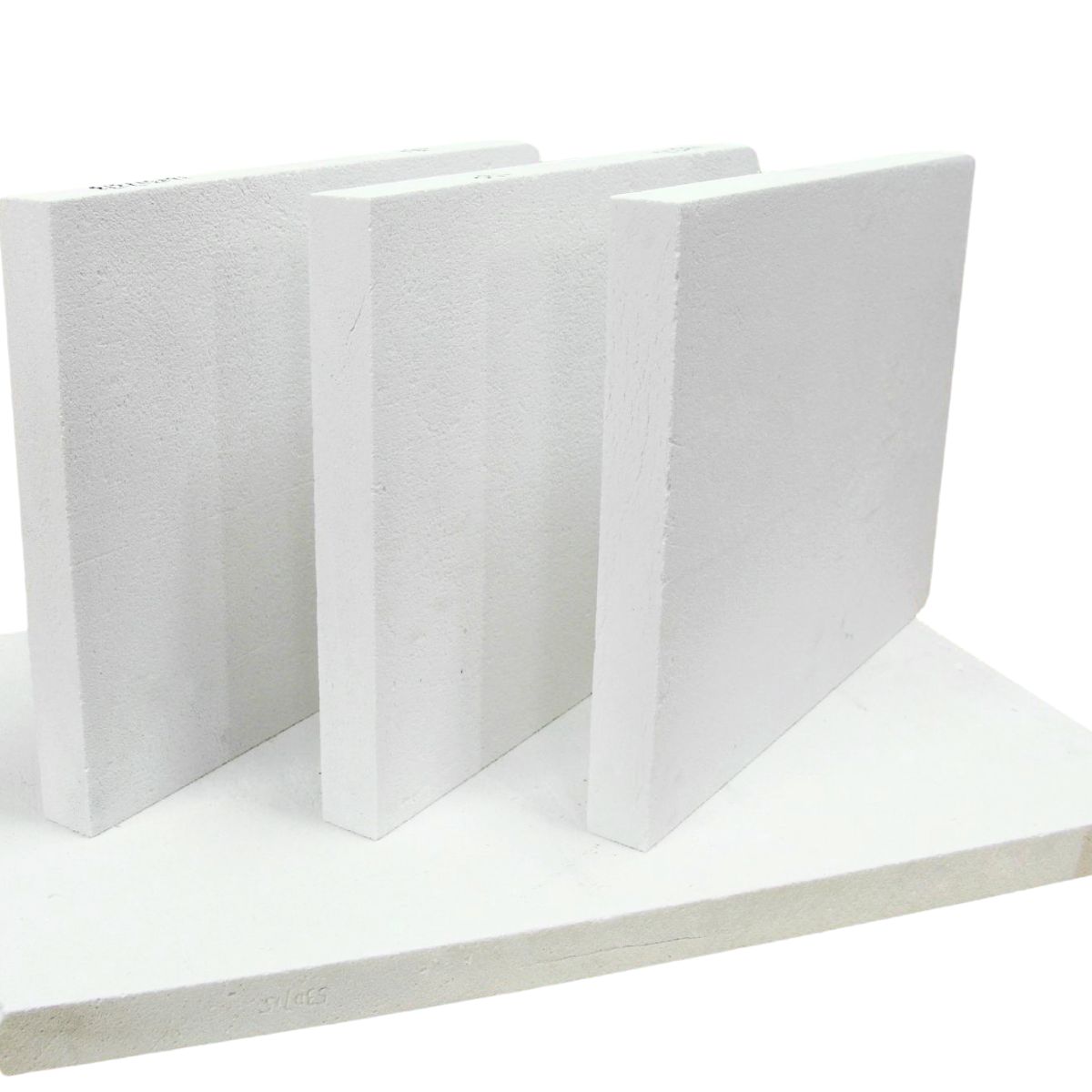

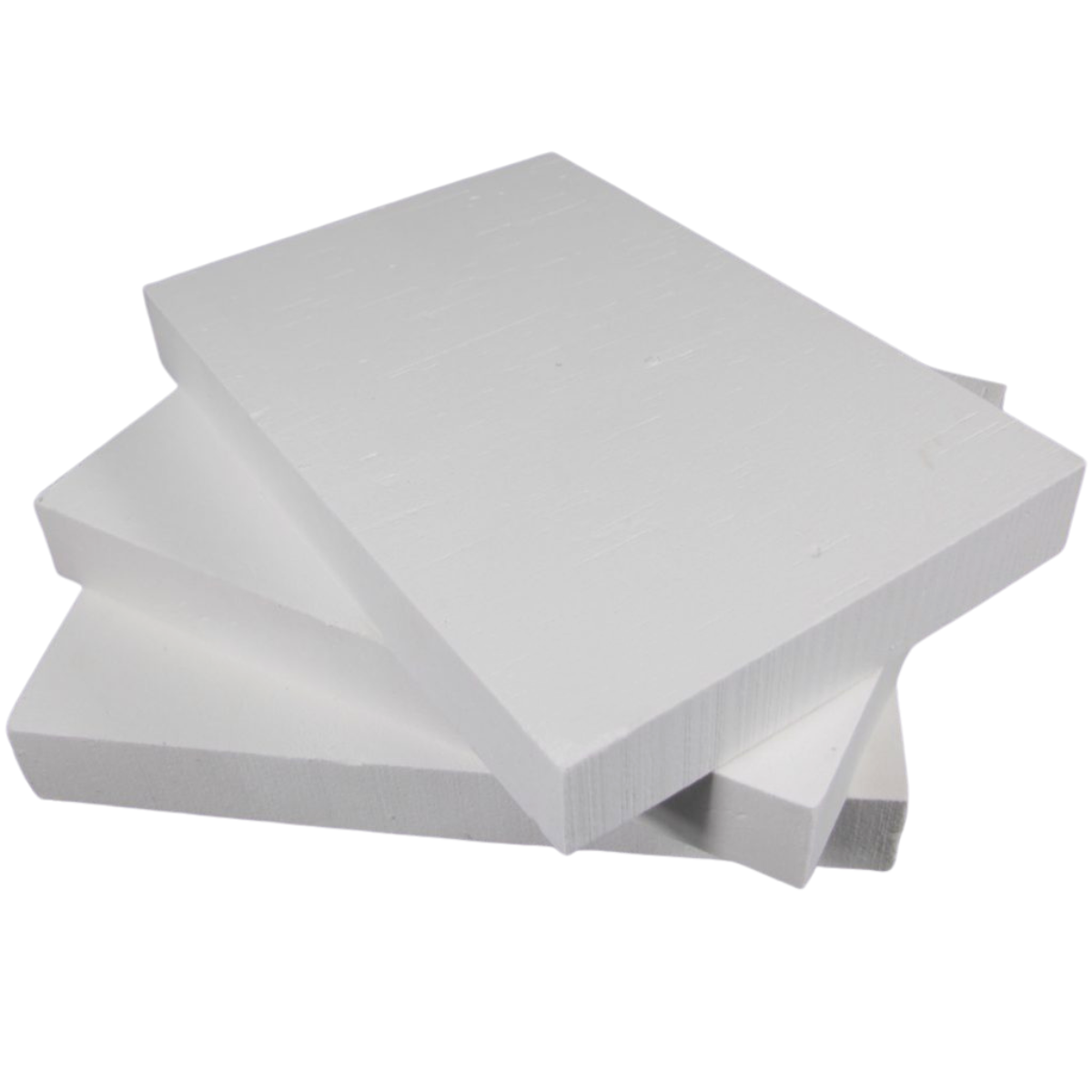

ECOTHERMS Ceramic Board

I. PRODUCT DESCRIPTION

ECOTHERMS Ceramic Board is a rigid insulation material manufactured from high-purity alumina-silica ceramic fibers.
It is designed for high-temperature industrial environments, combining excellent thermal insulation with high mechanical strength, making it ideal for structural and lining applications where blanket or paper insulation is not suitable.

II. COMPOSITION & STRUCTURE

• Material: High-purity alumina (Al₂O₃) and silica (SiO₂) ceramic fibers

• Bulk Density: 300 – 360 kg/m³

• Thickness: 25 mm – 50 mm

• Standard Size: 1000 × 600 mm (custom sizes available)

• Surface: Smooth, rigid, and uniform

III. KEY FEATURES & BENEFITS

✅ Superior Thermal Insulation
Low thermal conductivity ensures minimal heat loss and maximum energy efficiency.

✅ Rigid & Thermal Shock Resistant
Retains shape under high temperatures and mechanical load without cracking or warping.

✅ High-Temperature Resistance
Performs continuously between 1200°C and 1430°C, with excellent thermal shock resistance.

✅ Lightweight yet Strong
Easy to handle, transport, and install without compromising durability.

✅ Chemical Stability
Resistant to most acids, alkalis, and corrosive gases; asbestos-free and free from hazardous binders.

✅ Low Thermal Conductivity
Suitable for rapid-heating systems and intermittent furnace operations.

✅ Safe & Eco-Friendly
Asbestos-free, low dust emission; safe handling with appropriate PPE.

IV. INDUSTRIAL APPLICATIONS

1. Metallurgy

• Backup insulation for ladles, crucibles, and holding furnaces

• Induction furnace linings

• Applications in direct contact with molten metals

2. Industrial & Firing Furnaces

• Wall and roof insulation

• Combustion chamber lining

• Underfloor insulation

3. Power Plants & Energy Sector

• Gas turbine insulation

• Boiler, HRSG, and exhaust lining

• Backup insulation for refractory systems

4. Electronics & Laboratories

• High-temperature test furnaces

• Hot-face lining in laboratory kilns

• Sintering plates and boards

V. PACKAGING

• Packed in carton boxes, depending on thickness and quantity

• Wrapped in plastic film for moisture and dust protection

• Custom labeling with grade, batch, and size for easy traceability

VI. ENVIRONMENTAL & SAFETY NOTES

• 100% asbestos-free

• Organic binders safely burn off at ~200°C during initial heating

• Use gloves, goggles, and dust masks when cutting or installing

• Dispose of waste according to local environmental regulations
