I. PRODUCT DESCRIPTION – ECOTHERMS CERAMIC PAPER

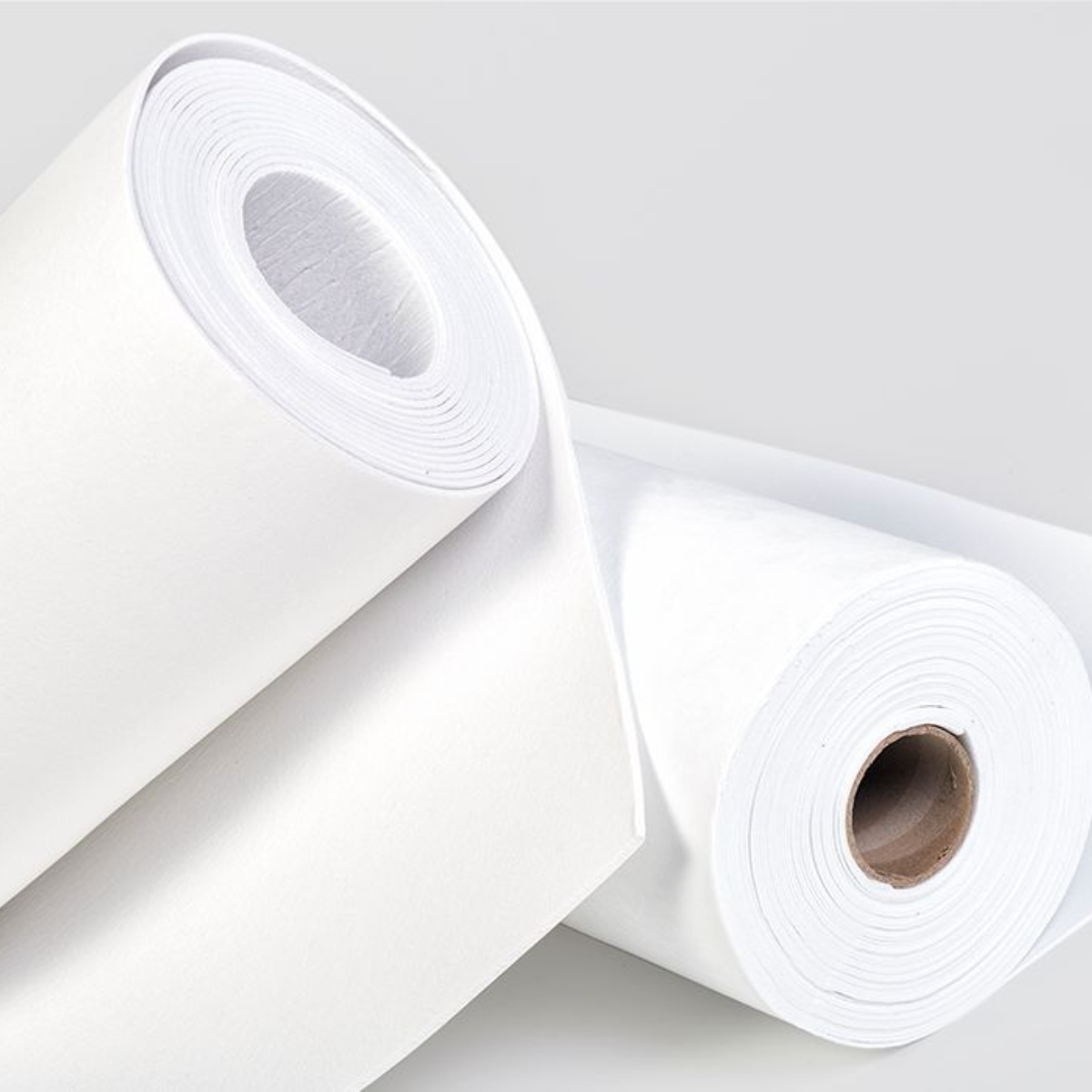

ECOTHERMS Ceramic Paper is a lightweight, flexible refractory material manufactured from high-purity alumina-silica ceramic fibers.
Designed for a wide range of high-temperature industrial applications, ECOTHERMS Ceramic Paper is the ideal choice for gaskets, sealing materials, and thermal insulation in harsh environments.

II. STRUCTURE & COMPOSITION – ECOTHERMS CERAMIC PAPER

• Material: High-purity alumina-silica ceramic fibers

• Binder content: Organic binders (<10%), providing flexibility and handling strength; burned out at ~200°C during initial firing

• Thickness: 2 mm – 6 mm

• Maximum service temperature: 1260°C

• Color: White

• Density: 180–220 kg/m³

• Dimensions: Roll width 610 mm

III. KEY BENEFITS OF ECOTHERMS CERAMIC PAPER

✅ High thermal resistance
Reliable performance at extreme temperatures, ideal for sealing and insulating in high-temperature conditions.

✅ Flexibility & ease of use
Smooth surface, excellent flexibility, and can be easily cut, rolled, or fabricated into complex shapes.

✅ Low thermal conductivity
Minimizes energy loss in high-temperature equipment, improving efficiency.

✅ Chemical stability
Resistant to most corrosive agents such as acids and alkalis, especially after organic burnout.

✅ Environmentally safe
Asbestos-free, low dust emission, safe to handle with proper PPE.

IV. APPLICATIONS OF ECOTHERMS CERAMIC PAPER

1. Metallurgy & Heat Treatment

• Backup insulation for ladles, tundishes, and troughs

• Gaskets and separators in welding and heat treatment processes

2. Kilns & Industrial Furnaces

• Seals for kiln doors, inspection ports, and flanges

• Interlayer insulation in multilayer furnace linings

3. Power Plants & Petrochemical Industry

• Expansion joint packing

• Pipe insulation and protective wrapping

4. Automotive & Aerospace

• Heat shields and thermal barriers

• Exhaust system insulation and fire protection wraps

5. Electronics & Laboratory Equipment

• High-temperature electrical insulation

• Furnace and oven linings in precision manufacturing

V. PACKAGING & STORAGE

• ECOTHERMS Ceramic Paper is supplied in rolls, packed in carton boxes and wrapped with plastic film to prevent dust and moisture.

• Store in a dry, clean, and ventilated warehouse.

• Avoid direct exposure to sunlight, rain, or high humidity, which may affect product quality.

• Keep away from chemicals, oils, or corrosive atmospheres.
