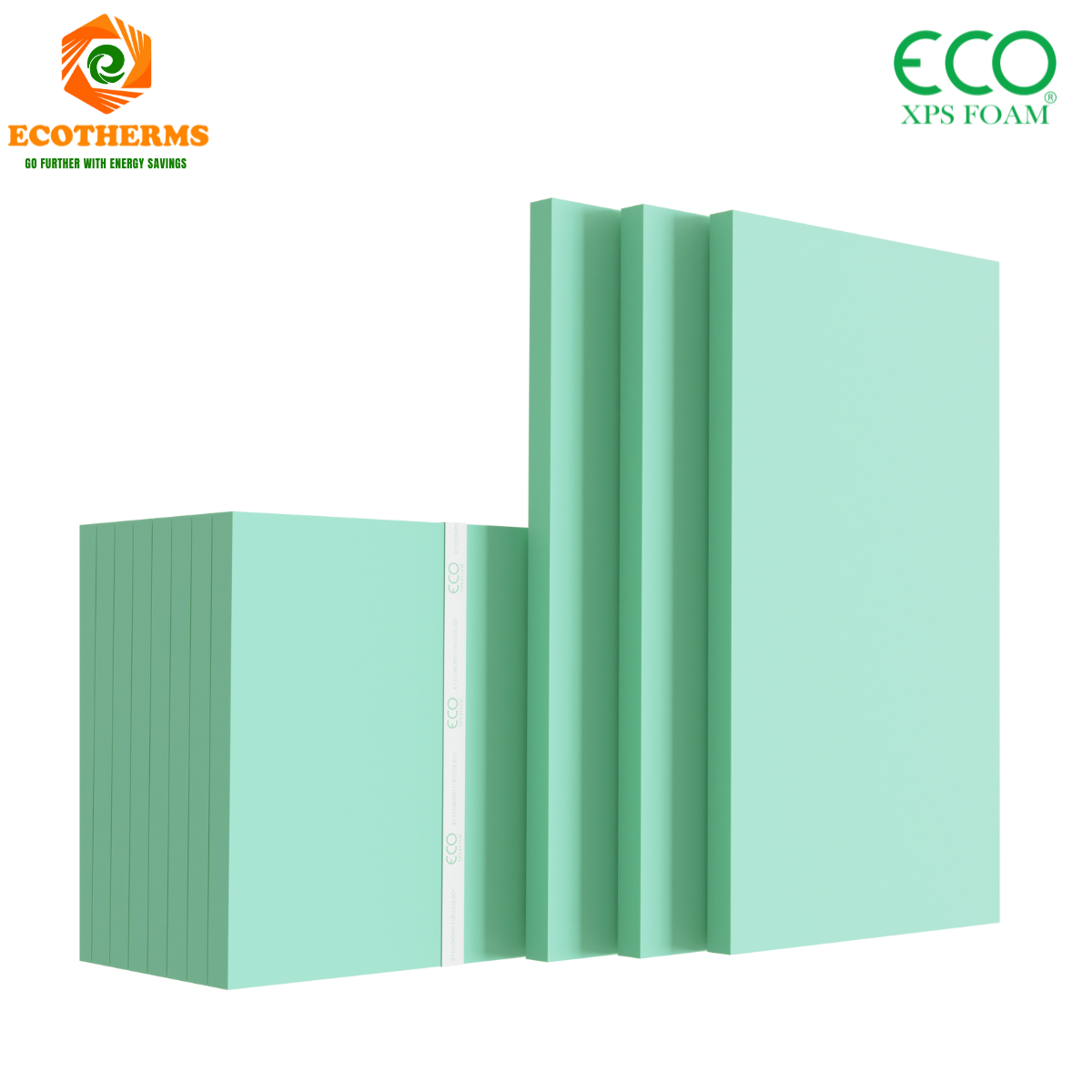

ECO XPS Foam - ECO150

ECOTHERMS JSC is a manufacturer of ECO XPS Foam insulation boards in Vietnam.
The ECO XPS Foam ECO150 insulation board offers excellent thermal insulation, high compressive strength, load-bearing capacity, and is almost completely waterproof.

The ECO XPS ECO150 insulation board is widely applied in various civil and industrial construction projects, such as:

Concrete floor insulation
Wall insulation
Insulation for residential houses, metal-roof buildings, prefabricated steel structures, and homestays
Expansion joint filler for columns and beams, or protection of waterproofing layers in basements and underpasses

Download the technical data sheet for ECO XPS Foam Insulation Board ECO150 here: TDS ECO150

This product offers high load-bearing capacity and meets ASTM standards as well as product quality testing requirements.

I. PRODUCT DESCRIPTION – ECO XPS ECO150 INSULATION BOARD
The ECO XPS Foam ECO150 Insulation Board is manufactured through a continuous extrusion process combined with CO² foaming and compression into fixed sheets.
With this extrusion and foaming technology, the product forms a structure similar to a honeycomb, where molecular bonds are tightly connected without gaps. This gives the ECO XPS Foam ECO150 Insulation Board excellent compressive strength, high load-bearing capacity, superior thermal insulation, and almost complete water resistance.
In addition, thanks to its lightweight nature, the ECO XPS Foam ECO150 board is widely applied in both civil and industrial construction, such as:

Wall insulation
Heat resistance for metal sheet roofs
Insulation for refrigerated trucks, cold storage rooms, and other temperature-controlled facilities

II. ADVANTAGES OF ECO XPS FOAM ECO150 INSULATION BOARD

Low thermal conductivity, high insulation performance
Excellent waterproofing and moisture resistance
Strong load-bearing and compressive strength
Easy to use, cut, and shape
Durable (30–50 years) under natural conditions
Stable in size and shape
Easy to transport and store
Environmentally friendly, recyclable product

The ECO XPS ECO150 insulation board is mainly used for partitions, walls, and ceilings in construction projects such as clean rooms, cold storage facilities, and office buildings. It helps save energy, reduce construction time, and increase overall cost efficiency.

III. STORAGE
ECO XPS ECO150 insulation boards should be stored in covered, clean, and dry areas. Do not store the product under direct sunlight. Avoid direct contact with fire, grinding, or welding activities. Do not install the product in areas exposed to excessively high temperatures above 70°C, or in places containing corrosive chemicals, gasoline, or organic solvents.

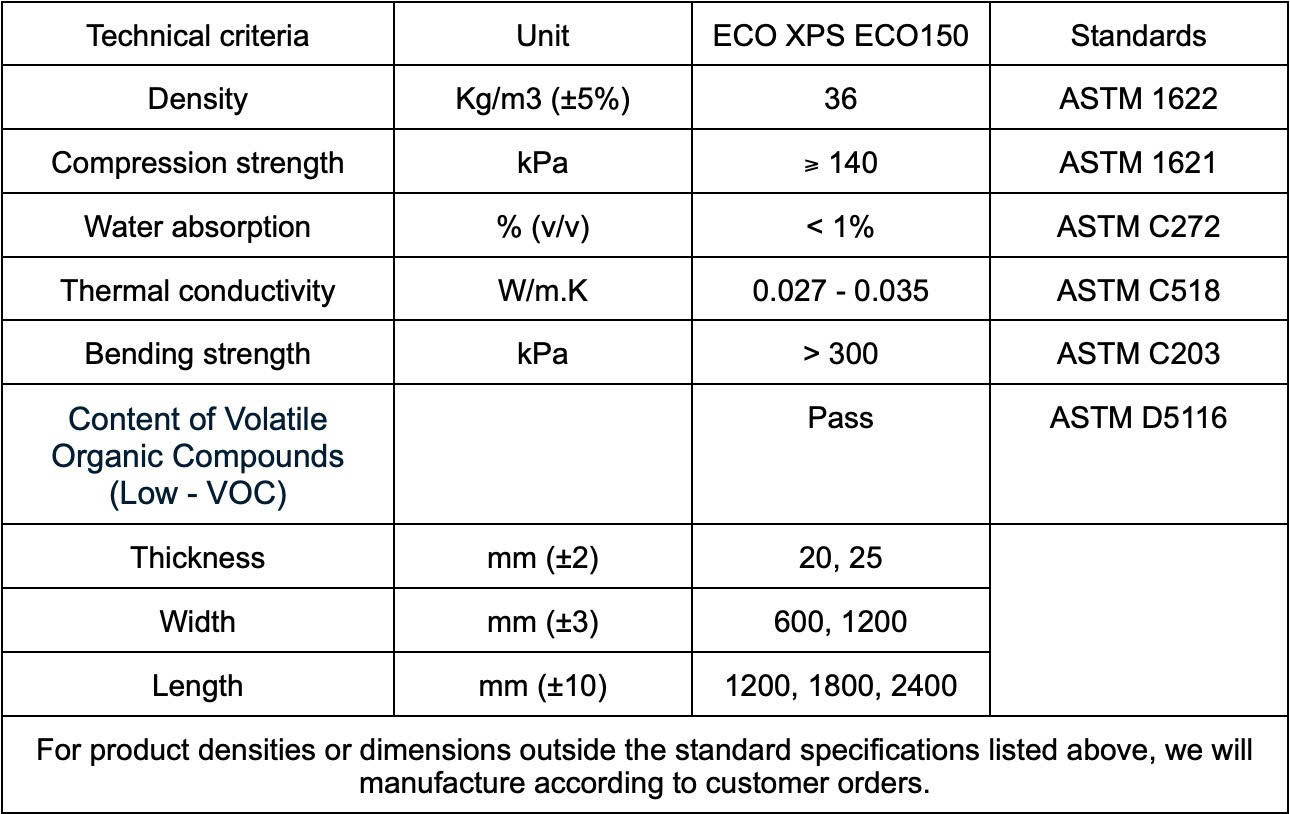

Techincal Specifications & Dimensions
