ECO ACOUSTIC Ceiling Panels are proudly manufactured in Vietnam by ECOTHERMS Joint Stock Company.
ECO ACOUSTIC ceiling panels are specially designed materials that absorb and reduce noise, helping to improve sound quality and minimize echo within indoor spaces.
These panels are typically installed in ceiling systems, especially in environments such as meeting rooms, cinemas, recording studios, restaurants, offices, schools, and hospitals, where acoustic comfort and noise control are essential.
I. Detailed Structure
The ECO ACOUSTIC Ceiling Panel is composed of three layers as follows:
1. Rockwool Core
-
Made from natural mineral fibers (such as basalt and dolomite) melted at high temperatures, then spun into fibers and compressed into panels.
-
Excellent sound absorption performance, especially in the mid to high-frequency range.
-
Outstanding thermal insulation and fire resistance due to the non-combustible nature of mineral wool.
-
Common density range: 80–120 kg/m³ (customizable based on project requirements).
2. Bottom Surface: Glass Fabric
-
The bottom glass fabric layer helps diffuse sound and enhances acoustic absorption.
-
Protects the Rockwool core from mechanical impact, dust accumulation, and increases overall durability.
-
Available in various color options, typically white, black, or gray.
3. Top Surface: Painted Glass Fabric
-
The top layer is a glass fabric coated with white or black paint, which helps reflect part of the light and evenly disperse sound throughout the space. Other design options include cloud patterns or textured spray finishes for a decorative touch.
-
Enhances the aesthetic appeal when viewed from above or in open-ceiling installations.
-
Protects the Rockwool core from moisture and dust coming from above.

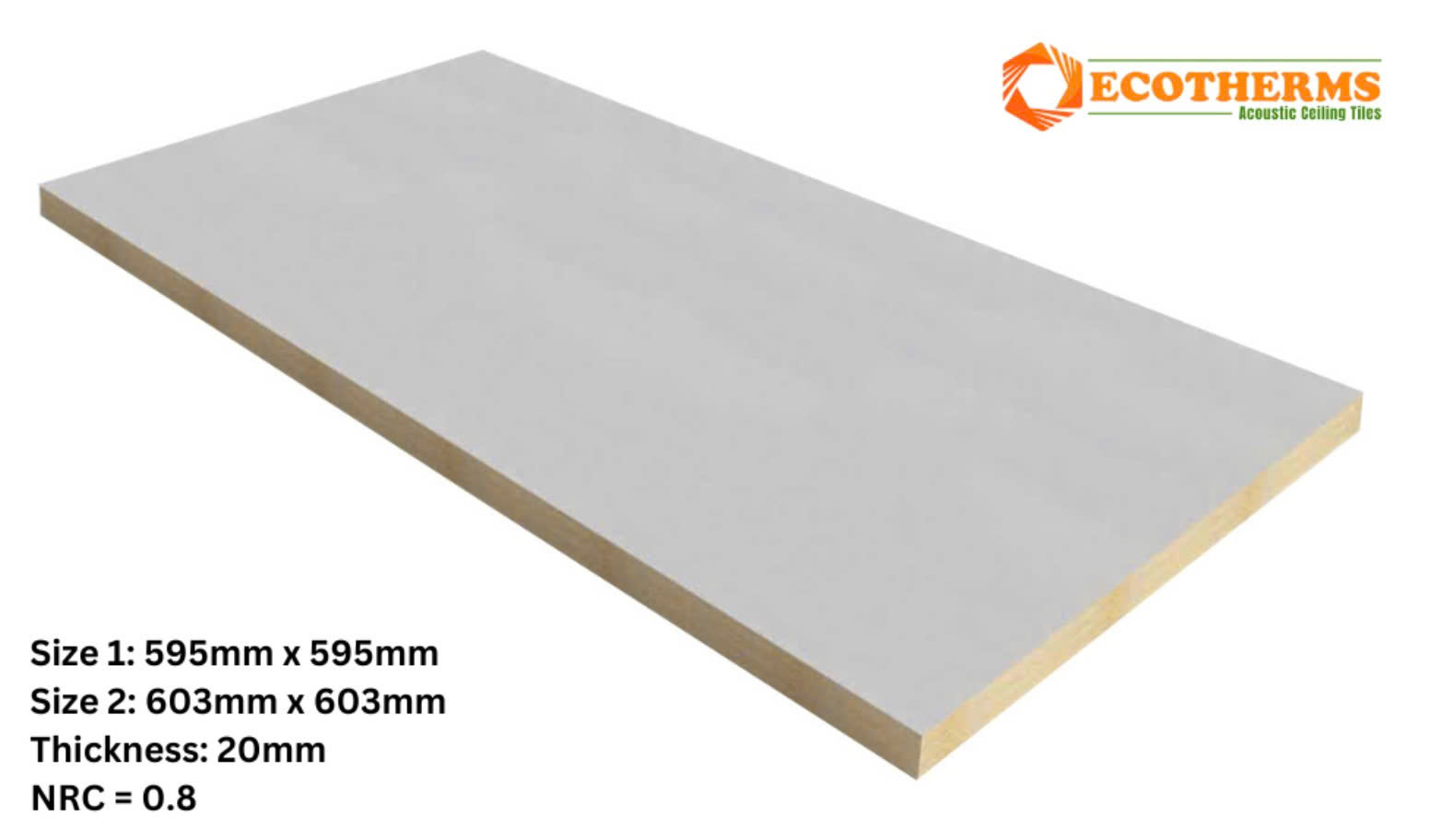

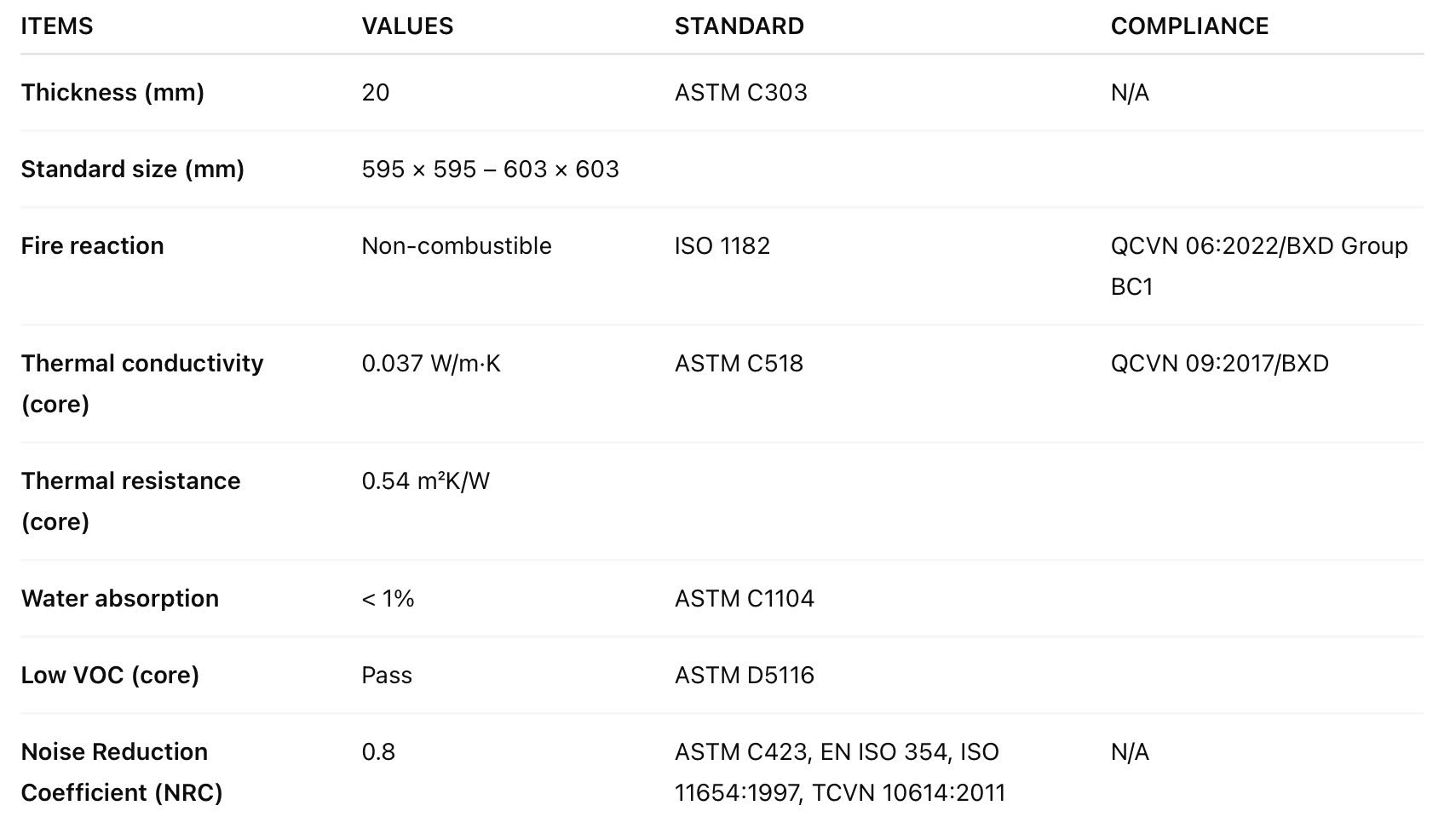

TECHNICAL SPECIFICATION & DIMENSIONS
4. Key Advantages
✅ Excellent sound absorption, creating a quieter and more comfortable environment.
✅ Fire-resistant, ensuring safety for buildings and occupants.
✅ Superior thermal insulation, minimizing heat loss and saving energy.
✅ Lightweight and easy to install, suitable for various ceiling systems.
✅ High aesthetic appeal, compatible with multiple interior design styles.

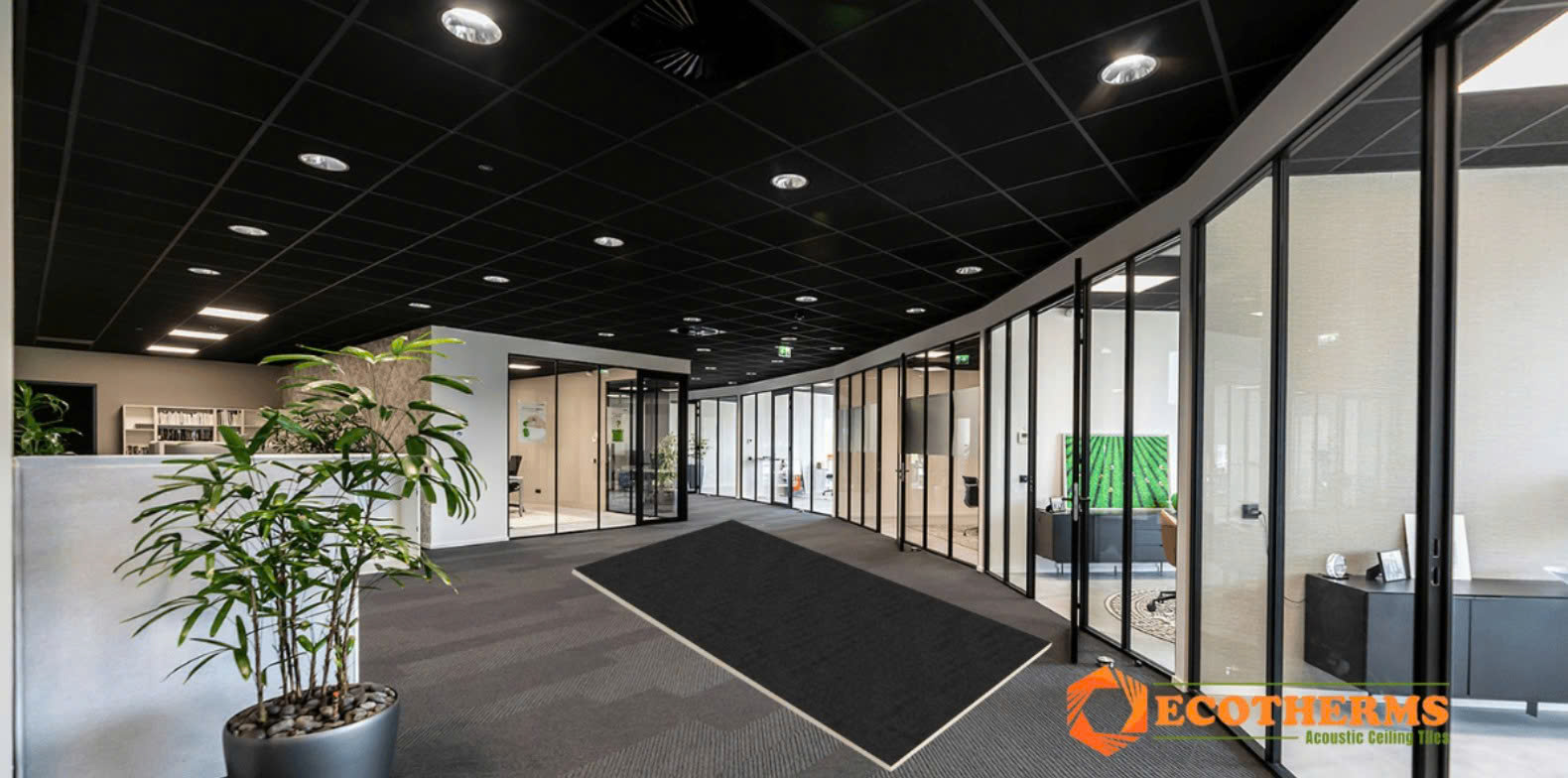

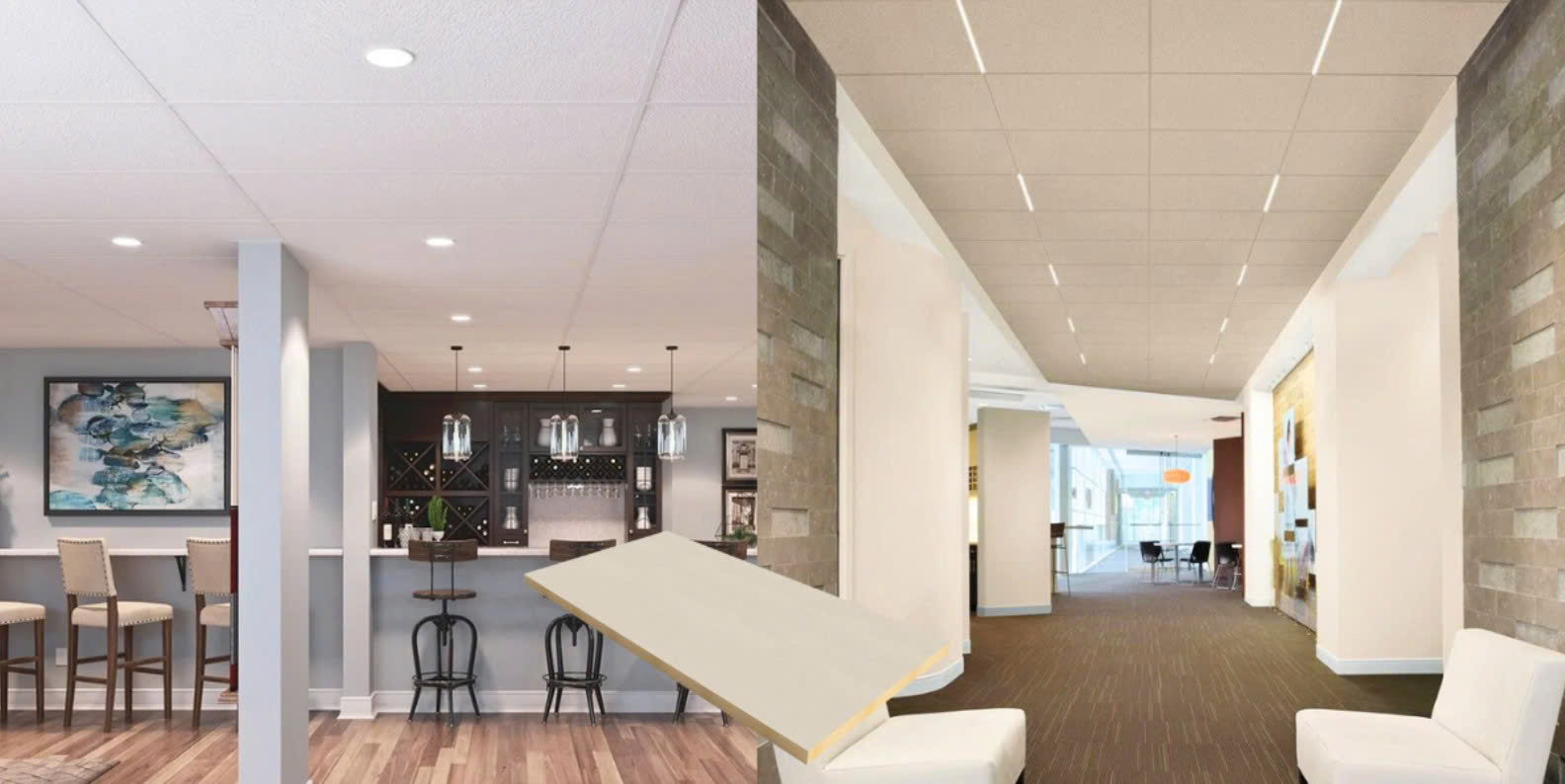

5. Practical Applications
🔹 Offices, meeting rooms, and conference centers.
🔹 Hospitals, schools, and libraries.
🔹 Factories, production facilities, and industrial zones.
🔹 Theaters, cinemas, recording studios, karaoke rooms, restaurants, and hotels.
